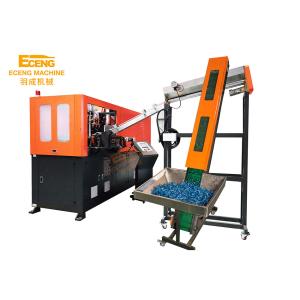

SMC Plastic PET Bottle Making Machine DELTA PLC Control

Name: SMC Plastic PET Bottle Making Machine DELTA PLC Control
Brand: Eceng
Price: 1 USD

China SMC Plastic PET Bottle Making Machine DELTA PLC Control wholesale

Place of Origin : Jiangsu, China

Brand Name : Eceng

Certification : CE&ISO

Packaging Details : 8 cavities 8000 bph plastic bottle pet blow moulding machine is adopted wooden pallet packing or decided by customer.

Supply Ability : 10 Set/Sets per Month

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 45days

Plastic Processed : PET

Max.Bottle Height(mm) : 330 mm

Neck Diameter(mm) : 38 mm

Max.Bottle Diameter(mm) : 105 mm

Bottle Volume(ml) : 2000 ml

Condition : New

Application : bottle

Voltage : Three phase 380V

Dimension(L*W*H) : 2.6*1.8*2.45(m)

Hollow part volume : 2L

High Pressure Valve Brand : SMC

Rotary Cylinder Brand : SMC

PLC Brand : DELTA

Power (kW) : 27

Weight (KG) : 2500 KG

Automation : Automatic

Warranty : 1 Year

Key Selling Points : Automatic

Applicable Industries : Food & Beverage Factory

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Automatic : yes

Model type : eceng company make blowing machine

Max bottle volume : 3 liter

Color : orange

Delivery time : 45 working days

Guarantee time : 1 year for free

Bottle diameter : 105mm

Bottle material : PET

Port : Shanghai

Contact Now

Eceng Factory price good quality Automatic Juice drink bottle of 450ml Plastic Bottle Making Machine

SMC Plastic PET Bottle Making Machine DELTA PLC Control

specification

Item			Q4500
Bottle type specification	Cavity	3
		Theory output	4500bph
		Max.volume	2L
		Bottle mouth maximum overall diameter	38mm
		Bottle biggest diameter	105mm
		Bottle maximum height	330mm
Power specification	Light tube quantity	18pcs
		Light tube power	1.5KW
		Maximum heating power	24KW
		All electric machine installation	27KW
		Actual consumption	19KW
Air pressure specification	Work pressure	7-9kg/cm2
		Low-pressure gas consumption	1000L/min
		Blow bottle pressure	25-35kg/cm2
		Higher -pressure gas consumption	1500Ltr/min
Air pressure specification	Work pressure	5-6 kg/cm2
		Temperature range	10℃
		Consumption	5000kcal/hr
		Frozen water flow	30L/min
Machine specification	Machine size	2.6x1.8x2.45
Machine specification		Machine weight	2.5ton

Eceng 600ML plastic sport drink bottle blow moulding machine bottles moulding machines

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

Our Advantage

1. Resonable price 2. Good after service 3. experienced skilled workers and professional engineers 4. Good quality ,excellent service ,long life mould 5. on time delivery time

Want to know more message , contact us with out hesitate ! Inquiry us now !

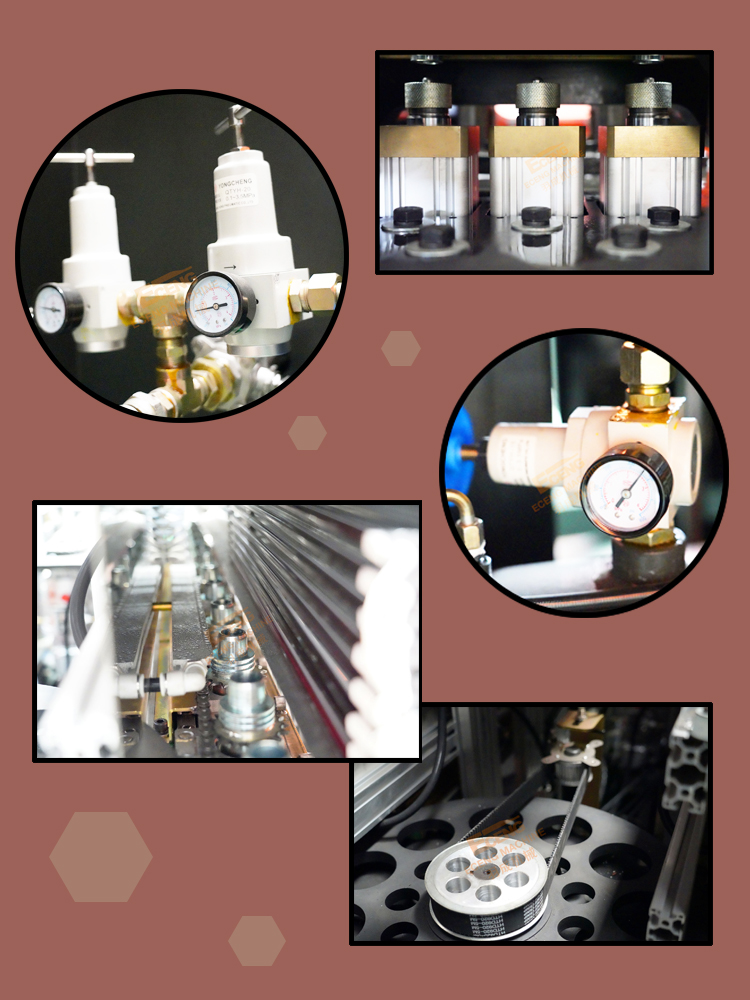

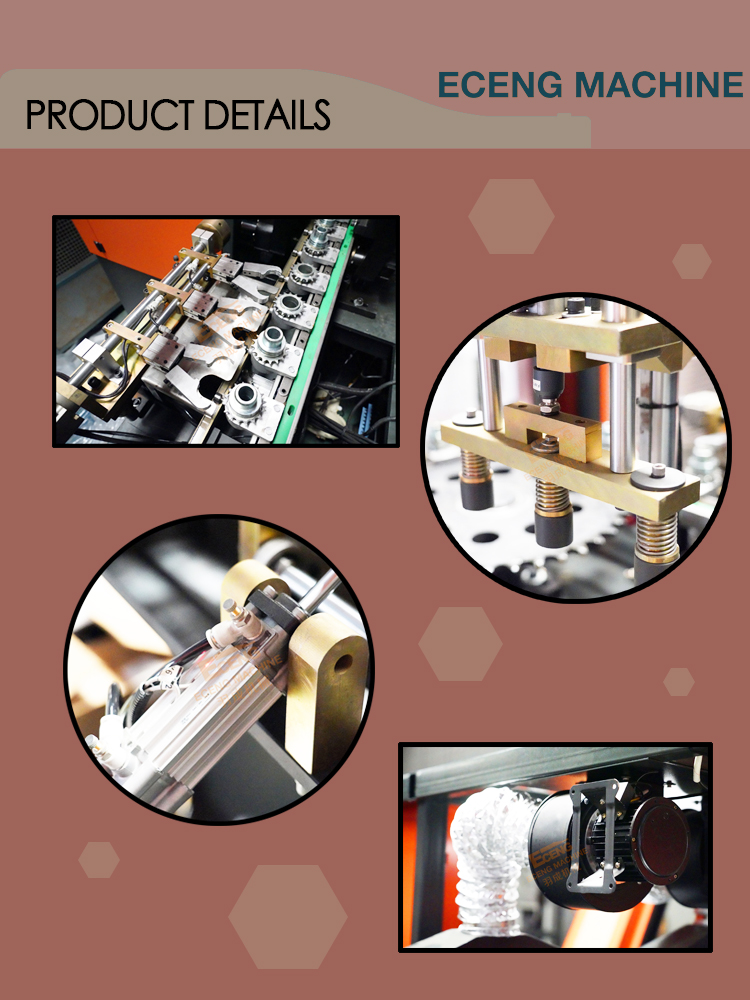

Detailed Images

Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Q series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

Company Introduction

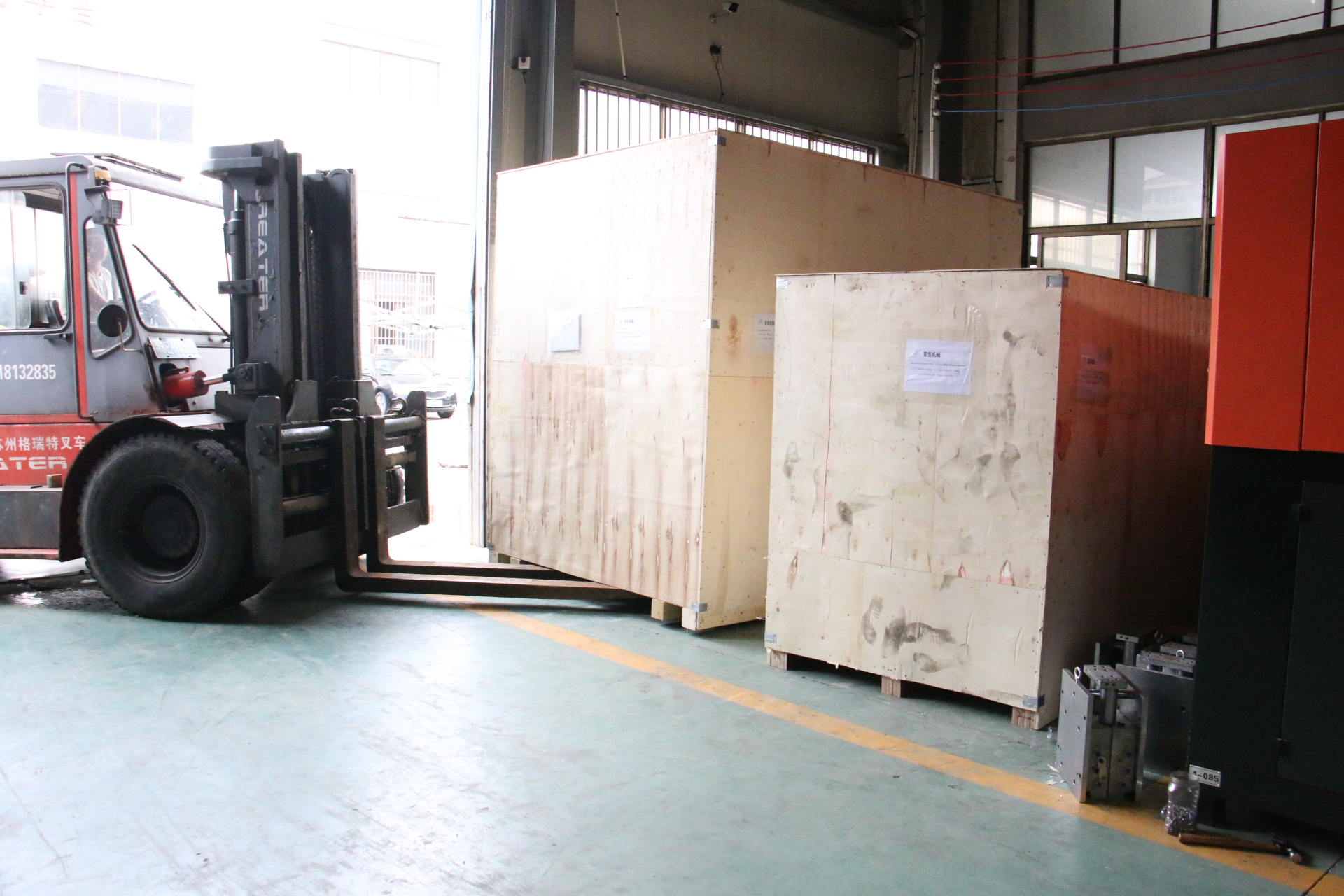

Packing&Shipping

packing

Conventional packaging: inside is wrapped with PE film outside is wooden box

delivery

Conventional packaging: inside is wrapped with PE film outside is wooden box

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
